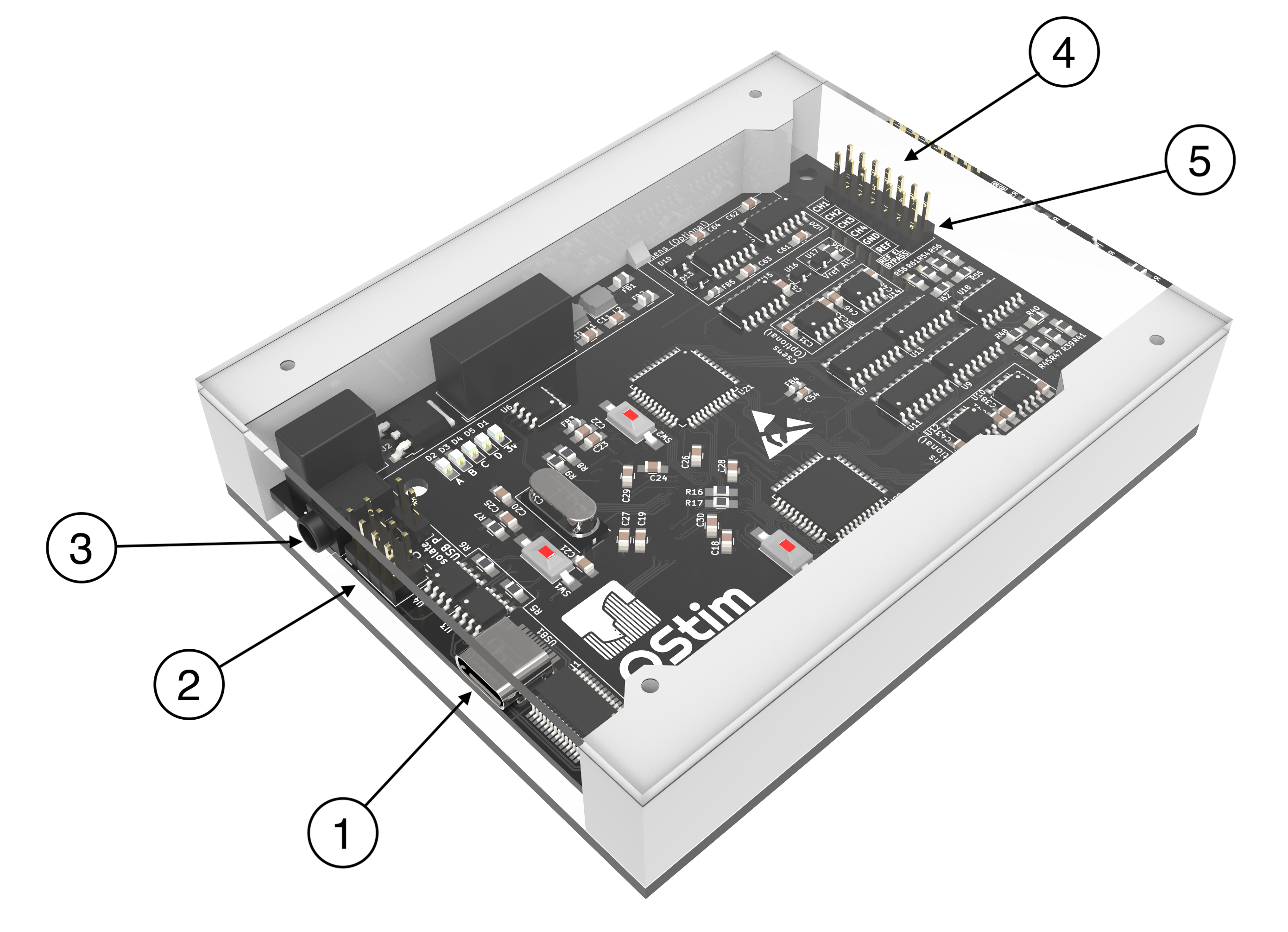

Hardware Overview
| 1 | USB-C Port | |
| 2 | Trigger IO and USB 5v/GND | |
| 3 | 3.5mm 5v DC Jack | |
| 4 | Channel Outputs, GND | |
| 5 | Reference electrode and bypass jumper |
| 1 | USB-C Port | |
| 2 | Trigger IO and USB 5v/GND | |
| 3 | 3.5mm 5v DC Jack | |
| 4 | Channel Outputs, GND | |
| 5 | Reference electrode and bypass jumper |
