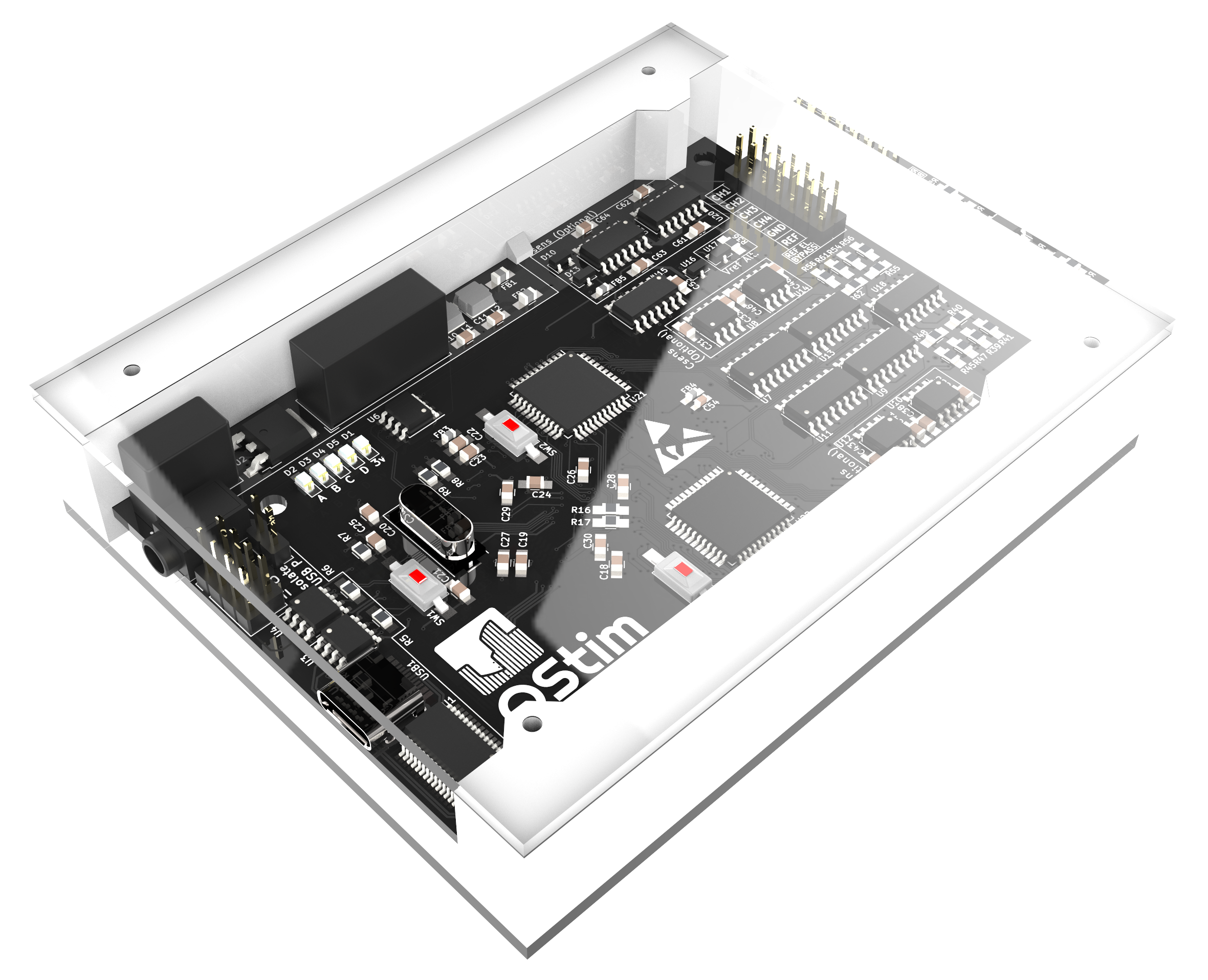

QStim Device Manual

This is the online manual for the QStim stimulator, it covers both the hardware and the software usage of device. Please view the quick start guide to find out how to get the device connected to your computer. Additional technical information can be found in the technical information tab. However it does not need to be read in order to be able to use the device.

Features and specifications

• Four channel constant current biphasic stimulator
• Powered and controlled via USB
• 1kV isolation
• Optional card edge connector for use as a module
• Electrode voltage and current acquisition.
• +/-3000uA current output (1uA resolution)
• 12v compliance
